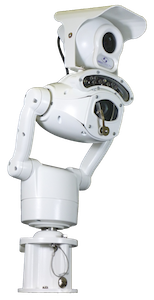

Predator PTZ Camera Range

360 Vision Technology’s Predator is our flagship product.  A feature packed and customizable range of PTZ surveillance cameras, the all metal construction IK10/IP68 Predator is bespoke built to order from our factory in Runcorn, UK, to match the needs of the most diverse operational specifications.

Whether you simply require HD clarity with powerful 40x optical zoom and great low light performance, or you need integrated long-range IR and/or white light, thermal core, 90° overview camera, radar detection, cellular transmission or perhaps 316L stainless steel construction for those really harsh environments – the Predator range has you covered!  We can also produce the Predator as hybrid (analogue video + RS485 control) or analogue only versions.

Features including privacy zones, advanced image stabilisation, Attack Detect, Base Scan on Impact and Mimic are standard within all models.

Predator can be finished in our standard RAL colours – white (RAL9003), black (RAL9005), mid grey (RAL7001) or grey (RAL7035), or you can choose from the RAL chart or opt for extreme paint for coastal and corrosive environments.

Designed, built and supported in the UK.

Predator HD PTZ

Predator HD is our high performance ruggedised PTZ camera, fully customisable with many integrated technology options available. Designed, built and supported in the UK.

Key features:

  • 1080p full HD with 40x optical zoom
  • 30x hybrid (HD with analogue video with RS485 control) option
  • 30x analogue only option
  • Superb low light performance
  • All metal construction, IP68 ingress protection & vandal resistant IK10 rating
  • -40°C – +65°C operation, with additional heater options
  • Long range illumination options:
    • infra-red only – 850nm to 600m / 940nm covert “no-glow” to 360m
    • White light only to 400m
    • IR & white light combined to 250m
  • Direct drive high torque gearbox
  • Straight, canted, horizontal or inverse arm options
  • Industry standard 4″ (101.6mm) PCD mounting
  • Hinged mount adaptor (HMA) base with standard connectors
  • Flat viewing window with wiper as standard and optional washer
  • 22 to 36VDC or POE (POE heater & lighting options dependent)
  • Auto low power mode; 13w when idle
  • Elexon specific UMS supply codes

INTEGRATED TECHNOLOGY / ADDITIONAL OPTIONS

  • 360° 200m radius radar detection
  • TX/TXA module for cellular transmission over 4G/5G/satellite/wireless
  • Side mounted 640/24mm/18° thermal camera (other options available from 6° to 95°)
  • Side mounted dual view 90° 3:1 wide angle camera
  • 361L marine grate stainless steel construction for harsh, corrosive environments

Downloads:

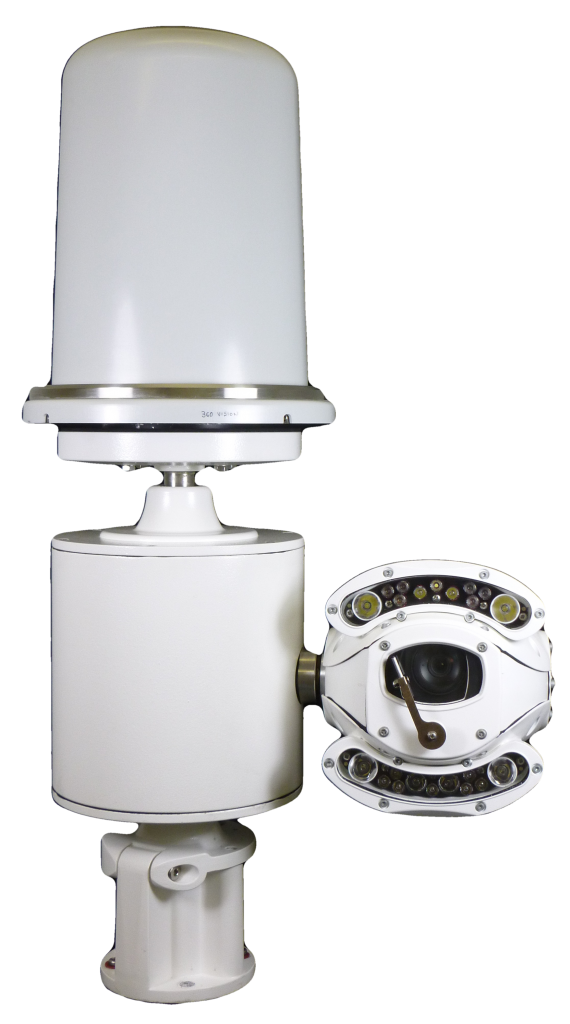

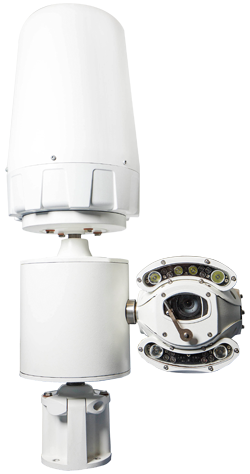

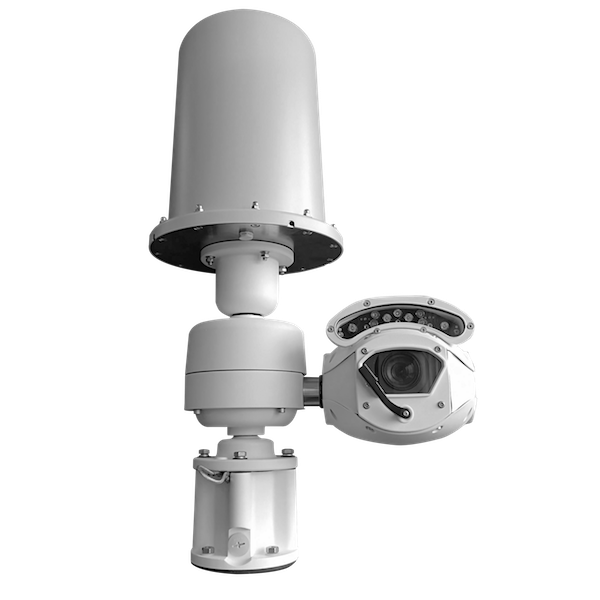

Predator Radar

This powerful all-in-one surveillance solution combines our rugged Predator HD PTZ camera with fully integrated 360° radar detection offering 125,000 square metres of continuous situational awareness, even in complete darkness, fog or driving rain.

Whether it’s securing remote infrastructure, critical assets or expansive perimeters, Predator Radar gives you the edge with intelligent tracking, alarm exclusion zones and seamless integration with leading VMS platforms.  Add long-range IR or white light, onboard thermal or wireless TX transmission, and you’ve got a future-proof platform built for your most demanding environments.

If you’re looking to reduce costs, eliminate blind spots and detect threats before they breach your line of sight, Predator Radar is the solution.

In addition, it’s customisable with our other integrated technology options.

Includes all key features/options of the standard Predator HD PTZ, plus:



Radar:

  • Integrated radar detection, providing constant surveillance with 360° scanning every second over 200m radius/400m diameter for cost effective wide area/perimeter protection
  • Automatic intelligent tracking of up to 4 simultaneous objects
  • Add up to 4 Predator cameras per radar
  • Only available with white finish



INTEGRATED TECHNOLOGY / ADDITIONAL OPTIONS

  • TX/TXA module for cellular transmission over 4G/5G/satellite/wireless
  • Integrated 640px 24mm/18° thermal camera (other options available from 4.9 to 73mm)
  • Side mounted dual view 90° 3:1 wide angle camera

Downloads:

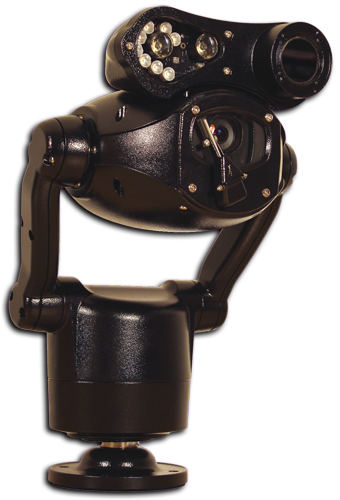

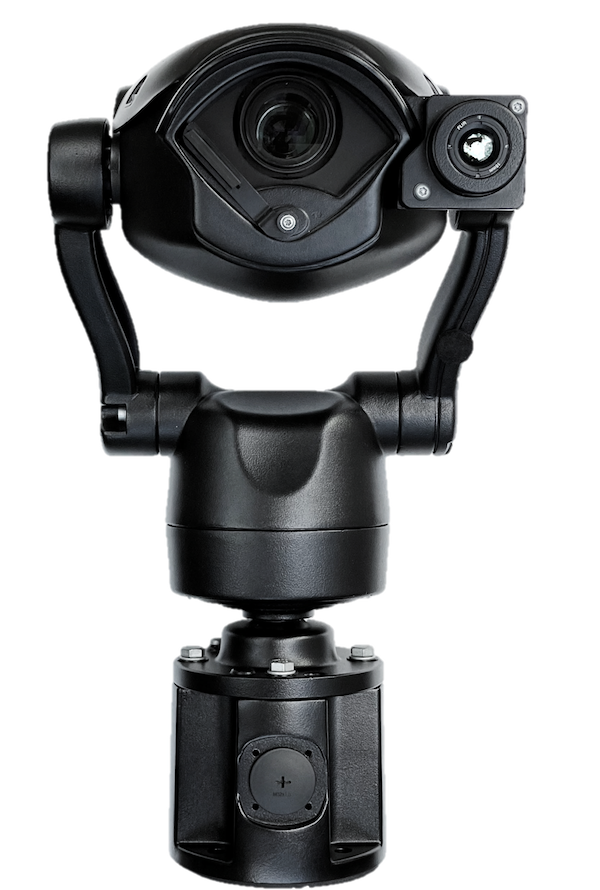

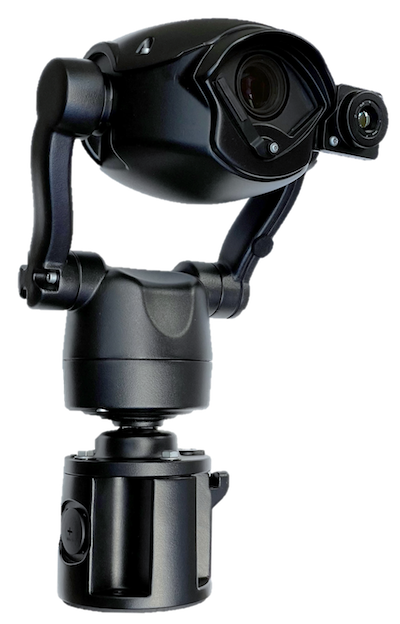

Predator HD with Thermal PTZ

When your surveillance camera needs to defy the challenges of fog, smoke, adverse weather, darkness or long distances – you need Predator Thermal.

Built to deliver uncompromising performance in the harshest environments, Predator Thermal combines a 1080p 40x optical zoom HD camera with a powerful FLIR Boson thermal imager available in a range of lens sizes. This dual-vision approach ensures both visual clarity and thermal detection, giving you the confidence to detect, identify and respond to threats – whatever the conditions.

Both video streams are transmitted over a single Ethernet output, simplifying infrastructure without sacrificing capability.  Whether you’re securing critical national infrastructure, utility assets or perimeters prone to low visibility, Predator Thermal helps you see what others can’t.

In addition, it’s customisable with our other integrated technology options.

Includes all key features/options of the standard Predator HD PTZ, plus:

  • Side mounted thermal core options between 4.9mm – 36mm (95° – 12° FOV)
  • Top mounted thermal core options in 55mm and 73mm (8° and 6° FOV)



INTEGRATED TECHNOLOGY / ADDITIONAL OPTIONS

  • 360° 200m radius radar detection
  • TX/TXA module for cellular transmission over 4G/5G/satellite/wireless
  • Available in 316L form factor with thermal core options up to 36mm 12° FOV

Downloads:

Predator HD DualView

Why choose between zoomed-in clarity and full-scene awareness when you can have both?

Imagine a PTZ camera that captures both the critical close-up and the big picture at once -our Predator HD DualView camera does exactly that, combining our industry leading HD PTZ performance with a seamlessly integrated wide-angle side camera, delivering simultaneous close-up detail and broad situational context.

Operators can gather critical evidence such as assailant escape routes, associated incident opportunism, first responder and emergency services arrival for instance – whilst maintaining situational awareness at the same time. It’s perfect for public spaces, such as arenas & stadiums, busy town centres and anywhere needing both wide-area & zoom capability.

In addition, it’s customisable with our other integrated technology options.

Includes all key features/options of the standard Predator HD PTZ, plus:

  • side mounted 1080p 90° wide angle camera to provide simultaneous overview whilst the main camera is zoomed in.

INTEGRATED TECHNOLOGY / ADDITIONAL OPTIONS

  • 360° 200m radius radar detection
  • TX/TXA module for cellular transmission over 4G/5G/satellite/wireless

Downloads:

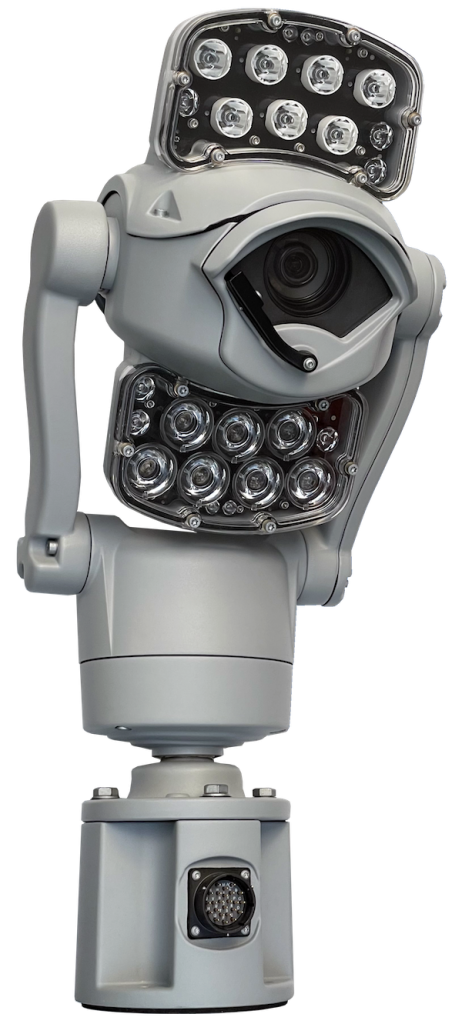

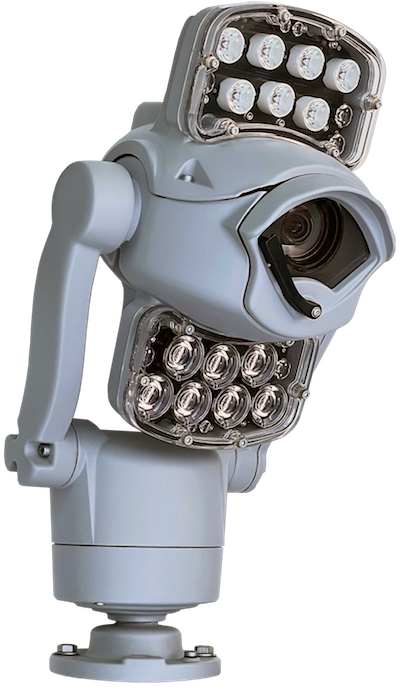

Predator RCE specifically tailored to the application of Highways surveillance

Designed to meet the demanding requirements of highways surveillance, Predator RCE brings the trusted performance of our flagship ruggedised PTZ camera into full compliance with National Highways SE2625 specifications.

With the same 1080p HD clarity, 40x optical zoom and powerful onboard intelligence as the standard Predator, the RCE variant is purpose-built for roadside deployment with high-durability BS4800 00A09 Flint Grey finish and equipped with MIL-spec connector.  Predator RCE is engineered for resilience in exposed, high-traffic environments.

Whether monitoring live traffic conditions, supporting incident detection or feeding into the wider SRN network, Predator RCE is the dependable choice for intelligent highways infrastructure.

Includes all key features/options of the standard Predator HD PTZ, plus:



  • Integrated MIL Spec connector (MIL-DTL-26482 Series 2)
  • BS4800 00A09 Flint Grey finish as standard



INTEGRATED TECHNOLOGY / ADDITIONAL OPTIONS

  • 360° 200m radius radar detection
  • TX/TXA module for cellular transmission over 4G/5G/satellite/wireless
  • Integrated 640px 24mm/18° thermal camera (other options available from 4.9 to 73mm)
  • Side mounted dual view 90° 3:1 wide angle camera



Downloads:

Stainless Steel Predator

When your environment is as tough as the security challenges you face, Predator Stainless Steel stands its ground.

Built from marine-grade 316L stainless steel, this variant of our industry-leading Predator PTZ camera is designed for corrosive and high-impact environments – from coastal installations and marine infrastructure to chemical plants, refineries and heavy industrial sites.

With the same full HD resolution, 40x optical zoom and advanced surveillance capability as the standard Predator, the stainless-steel model adds uncompromising durability where it’s needed most.  Resistant to salt spray, harsh weather and corrosive atmospheres, it ensures reliable performance and long operational life, even in the most hostile conditions.

Where resilience meets intelligence – Predator Stainless Steel is your watchkeeper in the toughest locations.

Key features/options:

  • 316L matt stainless steel housing with black, white or grey standard finish
  • Extreme paint finish available with extended life paint guarantee for coastal areas & corrosive environments
  • 1080p full HD with 40x optical zoom
  • Superb low light performance
  • 40x hybrid (HD with analogue video with RS485 control) option available
  • IP68 ingress protection & vandal resistant IK10 rating
  • -50°C – +65°C operation, with additional heater options
  • Long range illumination options:
    • infra-red only – 850nm to 250m
    • IR & white light combined to 200m
  • Direct drive high torque gearbox
  • Straight, canted, horizontal or inverse arm options
  • Industry standard 4″ (101.6mm) PCD mounting
  • Flat viewing window with wiper as standard and optional washer
  • 22 to 36VDC or POE (POE heater & lighting options dependent)
  • Auto low power mode; 13w when idle
  • Optional onboard storage to 512Gb
  • ONVIF Profile S compliant for easy integration with 3rd party VMS solutions
  • Easy & quick setup software

Downloads:

Stainless Steel Predator Thermal Camera

When corrosive environments and visibility challenges collide, Predator Stainless Steel Thermal rises to the occasion.

Crafted from marine-grade 316L stainless steel, this ruggedised PTZ camera is purpose-built for coastal, offshore and industrial sites where harsh conditions demand more than standard protection. With integrated top mounted Boson thermal imaging camera up to 36mm, it delivers clear, reliable detection in total darkness, dense fog or complex environments – where optical-only solutions may fall short.

All the features of our flagship Predator – HD video, 40x optical zoom, long-range illumination to 250m – combined with the power of thermal, in a housing designed to endure the elements.

For critical surveillance in corrosive, low-visibility settings, Predator Stainless Steel Thermal is the solution you can rely on.

Includes all key features/options of the Stainless Steel Predator HD PTZ, plus

  • Side mounted thermal core options between 4.9mm – 36mm (95° – 12° FOV)



Downloads:

Predator Hybrid PTZ

Predator hybrid is our high performance ruggedised PTZ camera, conveniently offering HD with analogue video and RS485 control – perfect for legacy sites and those with future plans to upgrade to IP whilst currently utilising an analogue system. Designed, built and supported in the UK.

Key features:

  • 30x hybrid (HD with analogue video with RS485 control) option
  • Superb low light performance
  • All metal construction, IP68 ingress protection & vandal resistant IK10 rating
  • -40°C – +65°C operation, with additional heater options
  • Long range illumination options:
    • infra-red only – 850nm to 600m / 940nm covert “no-glow” to 360m
    • White light only to 400m
    • IR & white light combined to 250m
  • Direct drive high torque gearbox
  • Straight, canted, horizontal or inverse arm options
  • Industry standard 4″ (101.6mm) PCD mounting
  • Hinged mount adaptor (HMA) base with standard connectors
  • Flat viewing window with wiper as standard and optional washer
  • 22 to 36VDC
  • Auto low power mode; 13w when idle
  • Elexon specific UMS supply codes

Downloads:

Predator Analogue PTZ

Predator Analogue is our high performance ruggedised PTZ camera, available to work with legacy security systems. Designed, built and supported in the UK.

Key features:

  • 30x analogue
  • PAL or NTSC
  • Protocols supported: 360, Pelco P/D, Forward Vision, RS485
  • Superb low light performance
  • All metal construction, IP68 ingress protection & vandal resistant IK10 rating
  • -40°C – +65°C operation, with additional heater options
  • Long range illumination options:
    • infra-red only – 850nm to 600m / 940nm covert “no-glow” to 360m
    • White light only to 400m
    • IR & white light combined to 250m
  • Direct drive high torque gearbox
  • Straight, canted, horizontal or inverse arm options
  • Industry standard 4″ (101.6mm) PCD mounting
  • Hinged mount adaptor (HMA) base with standard connectors
  • Flat viewing window with wiper as standard and optional washer
  • 22 to 36VDC
  • Auto low power mode; 13w when idle

Downloads:
